Logic Analyzer Kit DSO4202C Digital Multimeter Oscilloscope USB 200MHz 2 Channels LCD Handheld Portatil Logic Analyzer

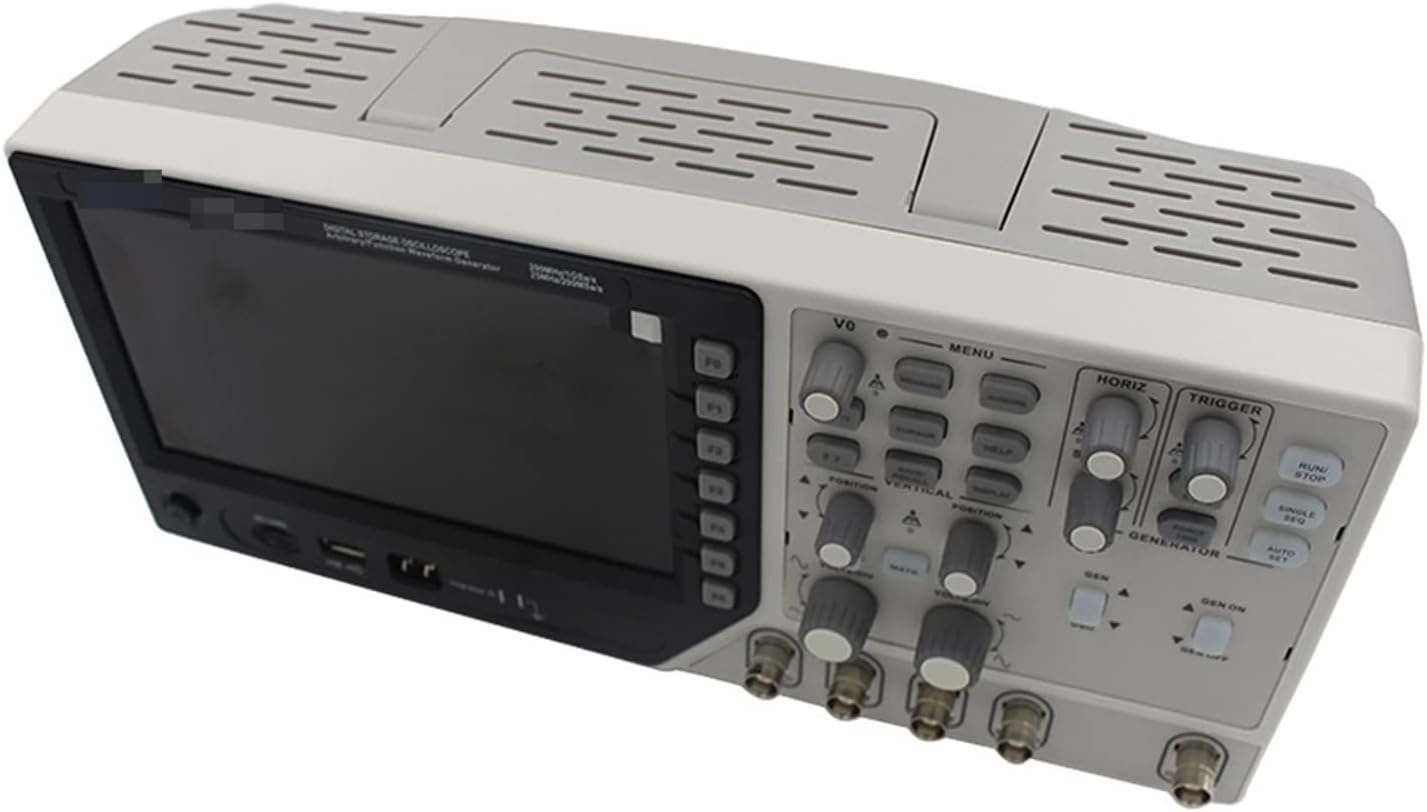

Oscilloscope Portable Benchtop DSO4202C 2ch 200MHz USB Oscilloscopes Arbitrary/Function Waveform Generator Diagnostic-tool *2 Channel Digital Oscilloscope + Arbitrary/Function Waveform Generator + Synchronizing Signal + External Trigger;Powerful, easily switch *200MHz Bandwidth; 1GSa/s Sample Rate; *2 Channel Oscilloscope; 40K Record Length; *The Keys for osilloscope and waveform generator is seperated;More Convenient to operate it simultaneously *7 inch 64K color LCD, Resolution 800x480;Clear and vivid waveform *32 kinds of tic measurement, Saving the user time and make work more simple and efficient *Powerful trigger function: Video, Edge, Pluse Width, Slope, Overtime, Alternate Trigger. *Arbitrary/Function Waveform Generator: 25MHz, 12 bits resolution, 200MHz , Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC; easy to simulate transducer. *25MHz Arbitrary waveform output (Sine wave up to 75MHz); *Support SD card, VGA function (optional); *Integrated USB Host, Support USB disk storage, USB interface/SD card system update

• This is a logic analyzer product with high cost performance.
• Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.
• The signal could be analyzed with many standard protocols, to get more straightforward communication data.
• It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.
• Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability
