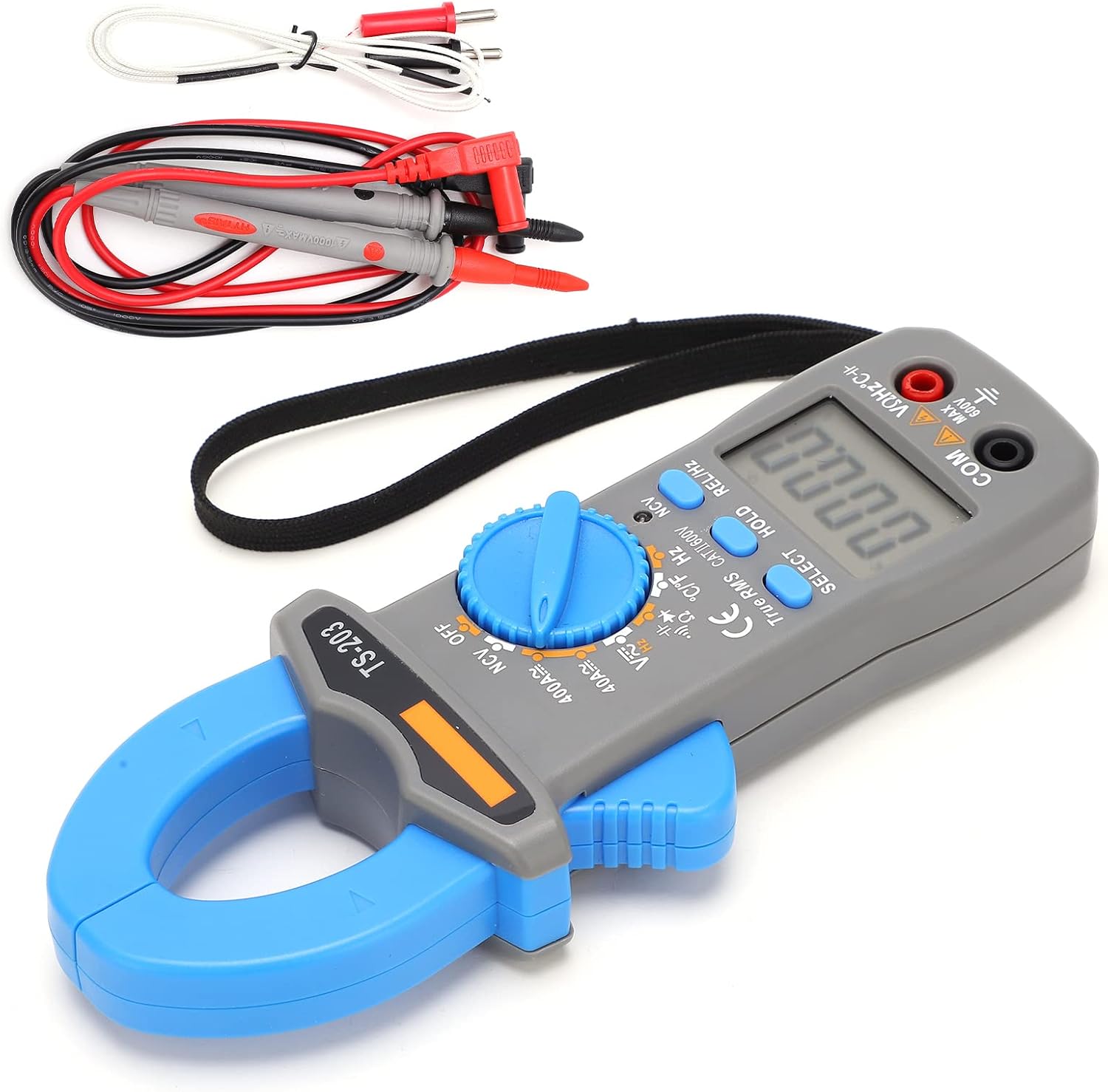

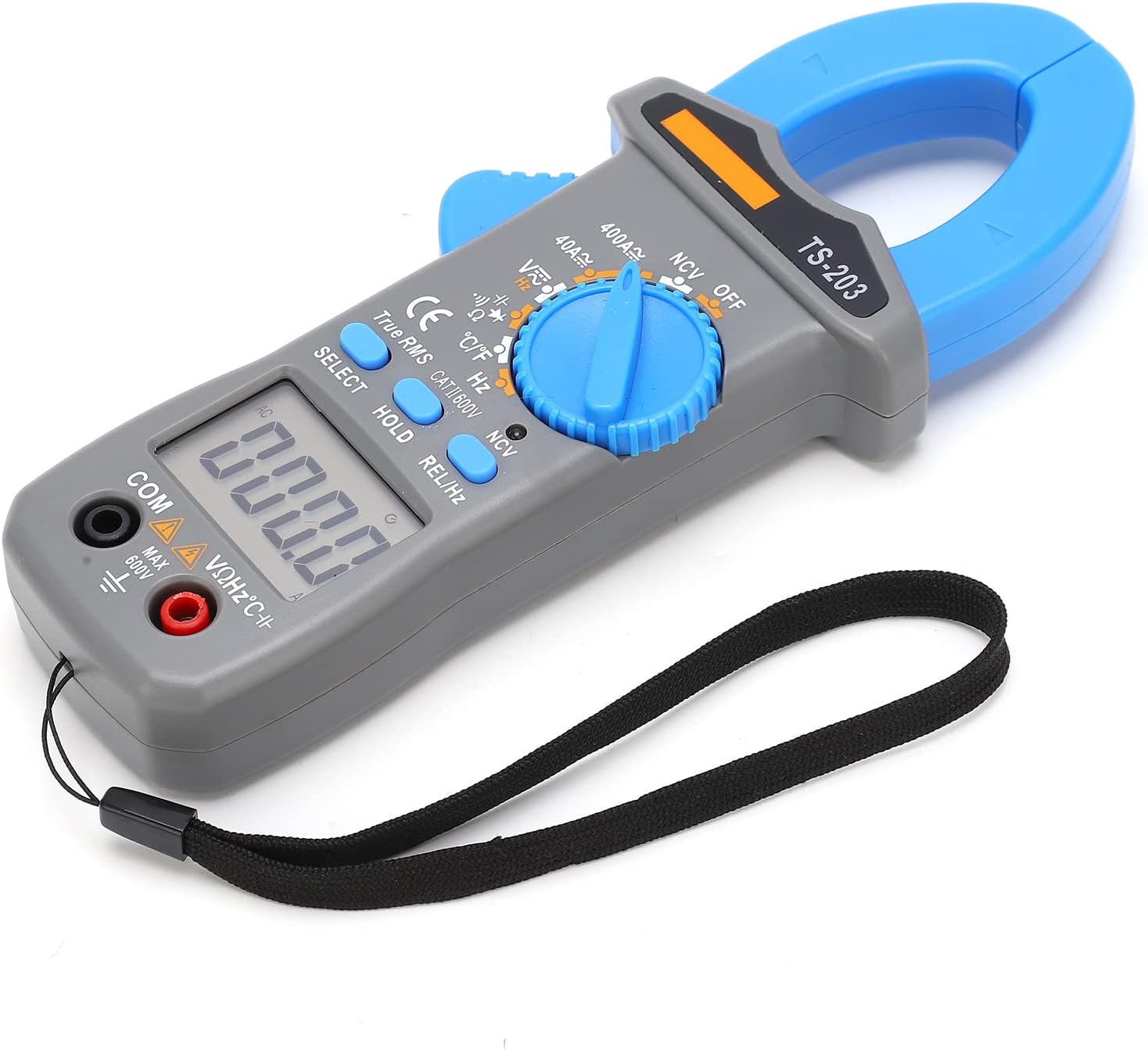

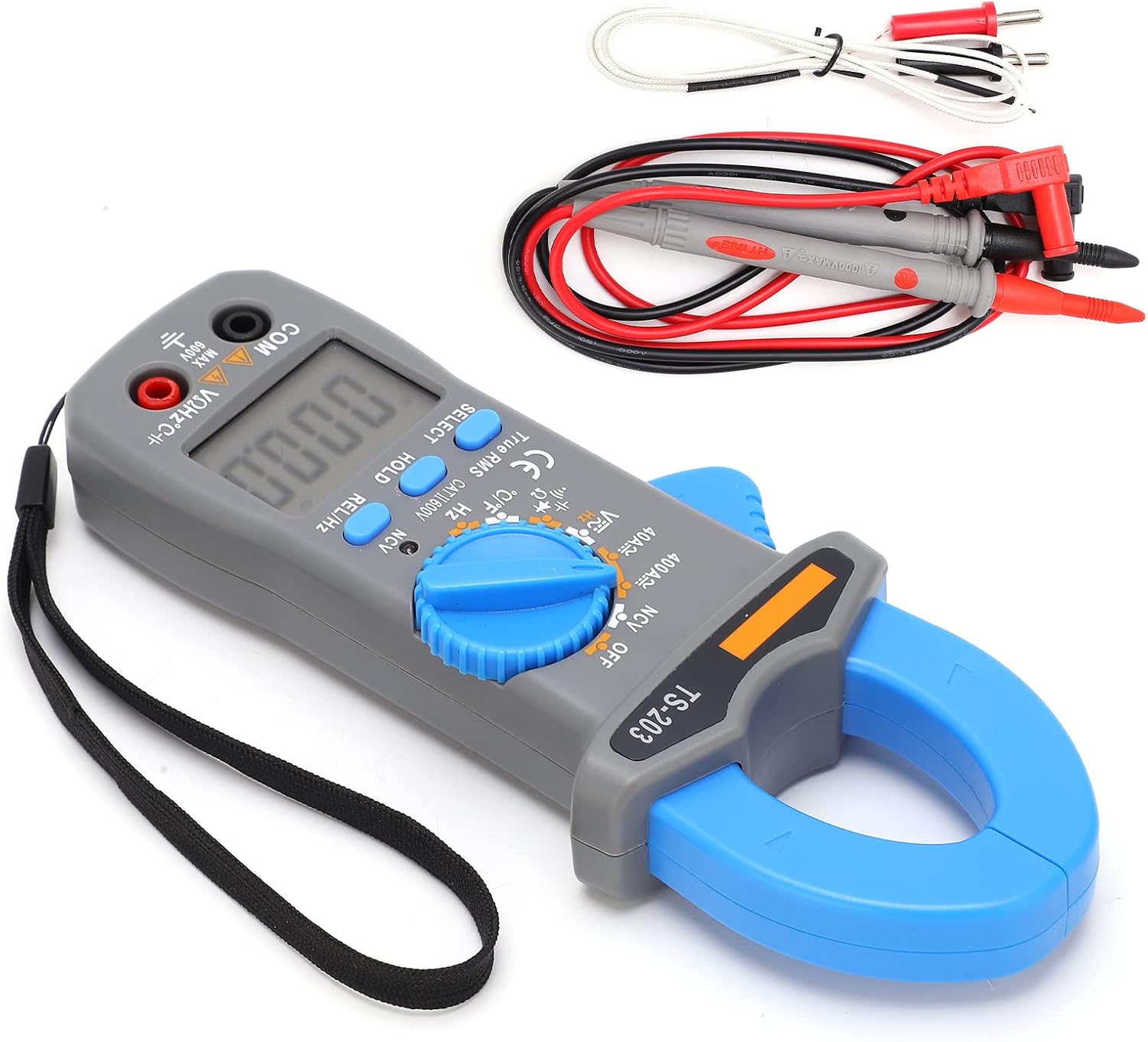

TS‑203 Digital Clamp Meter Small And Portable With A Digital DC AC Voltage Tester Current Meter Testing Tool for Outdoor

Specification:Item Type: Clamp MeterMaterial: ABSModel: TS-203Battery: 1.5V 2xAAA (Battery Not Included)Purpose: Learning for electronic beginners, electrical installation of home improvement circuits, electronic product maintenance, factory electromechanical maintenance testing, maintenance of automobile electric car circuits, household appliances maintenanceAC current4A10mA±(2.5%+5)400A1A±(2.5%+5)DC Current40A10mA±(2.5%+5)400A1A±(2.5%+5)DC voltage400mV0.1mv±(0.8%+5)4V1mV40V10mv400V100mV600V1VAC voltage4V1mV±(1.0%+3)40V10mv400V100mV600V1VResistance400Ω0.1Ω±(1.0%+2)4kΩ1Ω40kΩ10Ω400kΩ100Ω4MΩ1kΩ40MΩ10kΩCapacitance2nF1pF±(4%+10)40nF~400uF10pF~100nF±(4%+5)4mF~40mF1uF~1uF±(10%)Package List:1 x Clamp Ammeter(Battery Not Included)2 x Test Lead1 x Temperature Probe1 x Carrying Case1 x ManualNote:1. Please read the instructions carefully when using the meter, and pay special attention to the "warning" content. Please follow the "Warning" instructions.2. Check the meter and test leads before use, and beware of any damage or abnormality.3. When the meter is measuring, do not touch the unused input terminal. If an abnormal situation occurs. Do not measure voltage higher than the allowable input value.4. Do not expose the meter to strong light, high temperature or humidity.5. If there is a crash during use, just turn off the power and restart it.

• Using the launched revolutionary digital multimeter chip, the chip is equipped with a digital processor to achieve 1kHz digital true effective value measurement.
• The maximum measuring range of capacitance is 100mF, and the built in calibration program with external EEPROM can easily complete various high accuracy digital calibrations.
• The measurement is accurate, the clamp on digital clamp meter has the characteristics of high reliability and high accuracy, and the measurement data is trustworthy.
• Small and portable, small size and light weight, easy to carry out for measurement and use, full range overload protection safety.
• Durable, made of high quality ABS material, not easy to be damaged, long service life, and can be used for a long time.
