waveshare ESP32-S3 1.3inch Display Development Board 240×240 Pixels 262K Color LCD，Supports 90° Hardware Rotation,Built-in ST7789V2 Chip and 6-Axis IMU
4.4 (66 items)
Limited Time SaleUS$12.67 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 228878059 | Release Date | 2026/05/31 | List Price | US$8.44 | Model Number | 228878059 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

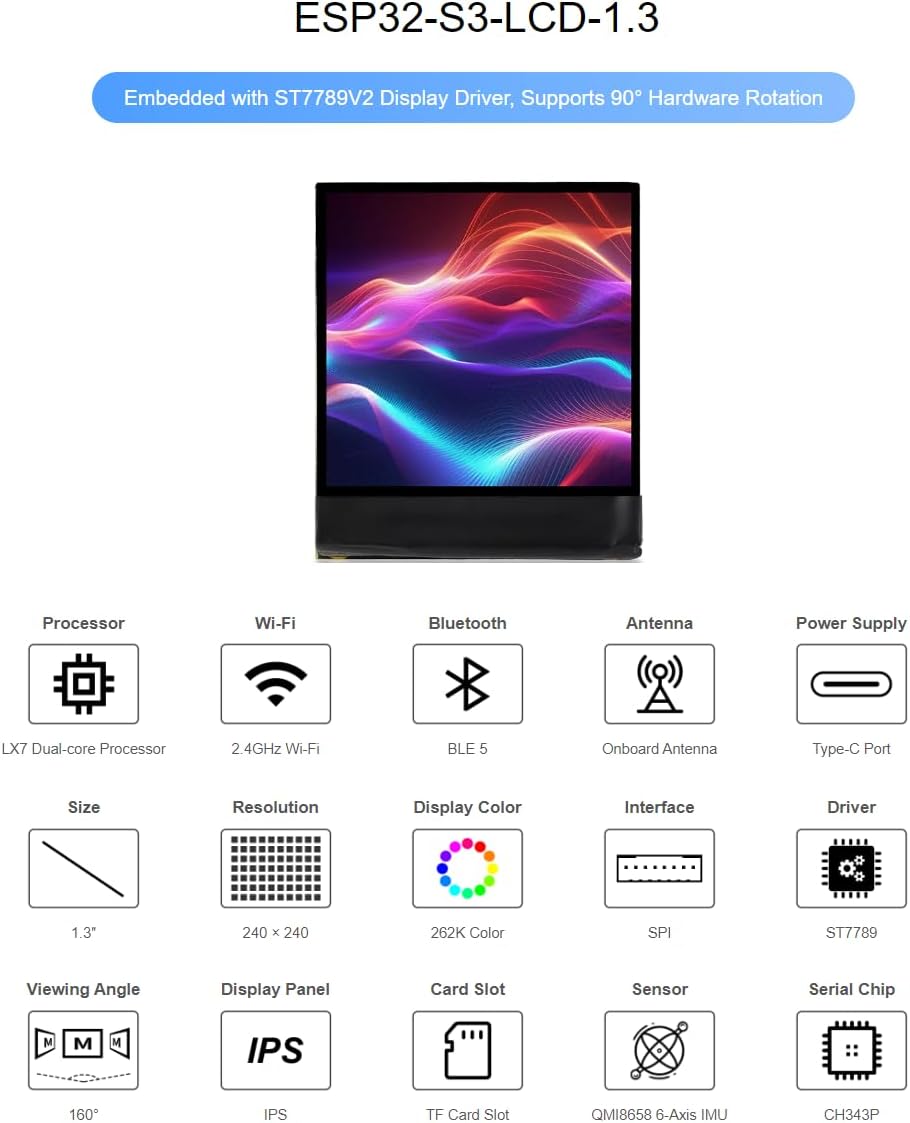

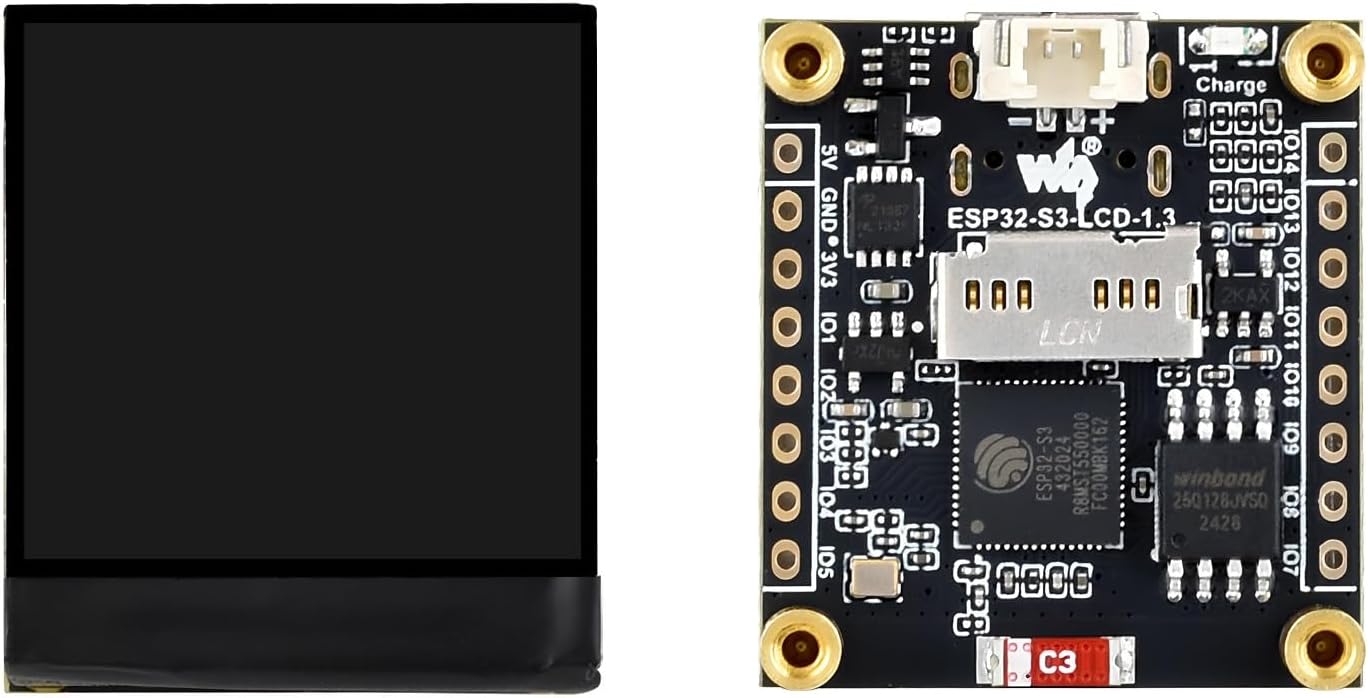

ESP32-S3 1.3inch Display Development Board, 240×240 Pixels, Built-In ST7789V2 Display Driver Chip And 6-Axis IMU, 262K Color, SPI Communication, Supports 90° Hardware Rotation Features The ESP32-S3-LCD-1.3 is a low-cost, high-performance MCU board equipped with 240MHz dual-core processor. It is compact in size, with onboard 1.3inch 262K color LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RGB LCD, and Wi-Fi / Bluetooth antenna, which makes it easy for you to develop and integrate it into products quickly. Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use Onboard 1.3inch 240×240 pixels 262K display for clear and colorful pictures Built-in ST7789V2 display driver, using SPI communication, effectively saving the IO resources Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures and other applications Onboard 3.7V MX1.25 lithium battery recharge / discharge header Adapting 13PIN 2.54mm GPIO header for connecting peripherals and debugging, supports flexible configuration of pin functions Optional for prism cube to enhance the optical display effect and greater expandability Package Content ESP32-S3-LCD-1.3 x1 Black pinheader x2 Usage Instructions ESP32-S3-LCD-1.3 currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can choose the right development tool according to your project needs and personal habits.
- The ESP32-S3-LCD-1.3 is a low-cost, high-performance MCU board equipped with 240MHz dual-core processor.
- It is compact in size, with onboard 1.3inch 262K color LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RGB LCD, and Wi-Fi / Bluetooth antenna, which makes it easy for you to develop and integrate it into products quickly.

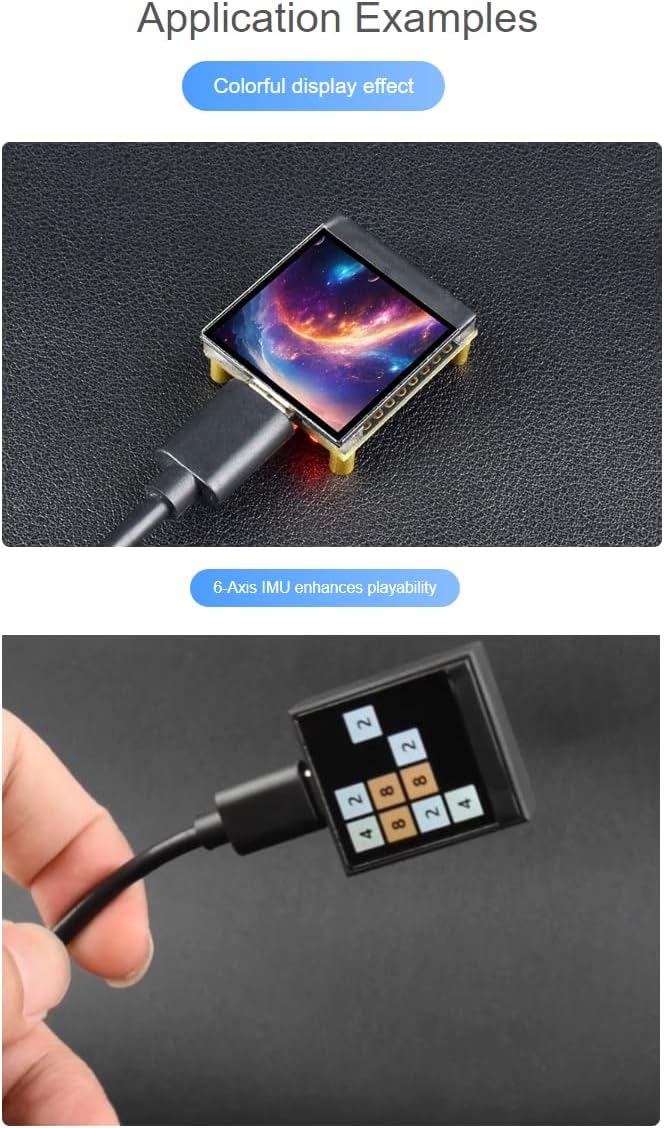

- Built-In ST7789V2 Display Driver Chip And 6-Axis IMU
- SPI Communication
- Supports 90° Hardware Rotation
| UPC | 788046389760 |
|---|---|
| ASIN | B0F4DFL1NM |
| Brand | waveshare |
| Model Name | ESP32-S3 1.3inch Display |
| Manufacturer | Waveshare |
| Model Number | ESP32-S3 1.3inch Display |
| Mfr Part Number | ESP32-S3 1.3inch Display |
| Processor Brand | Espressif |
| Processor Count | 2 |
| Processor Speed | 240 MHz |
| Total Usb Ports | 1 |
| Operating System | FreeRTOS |
| RAM Memory Installed | 0.02 GB |
| RAM Memory Technology | DDR |
| Connectivity Technology | USB Type-C, Wi-Fi 802.11 b/g/n, Bluetooth 5 |
| Memory Storage Capacity | 16 MB |
